SNAD

Challenge description:

No, it’s not a typo. It’s not sand. It’s SNAD. There’s a difference!

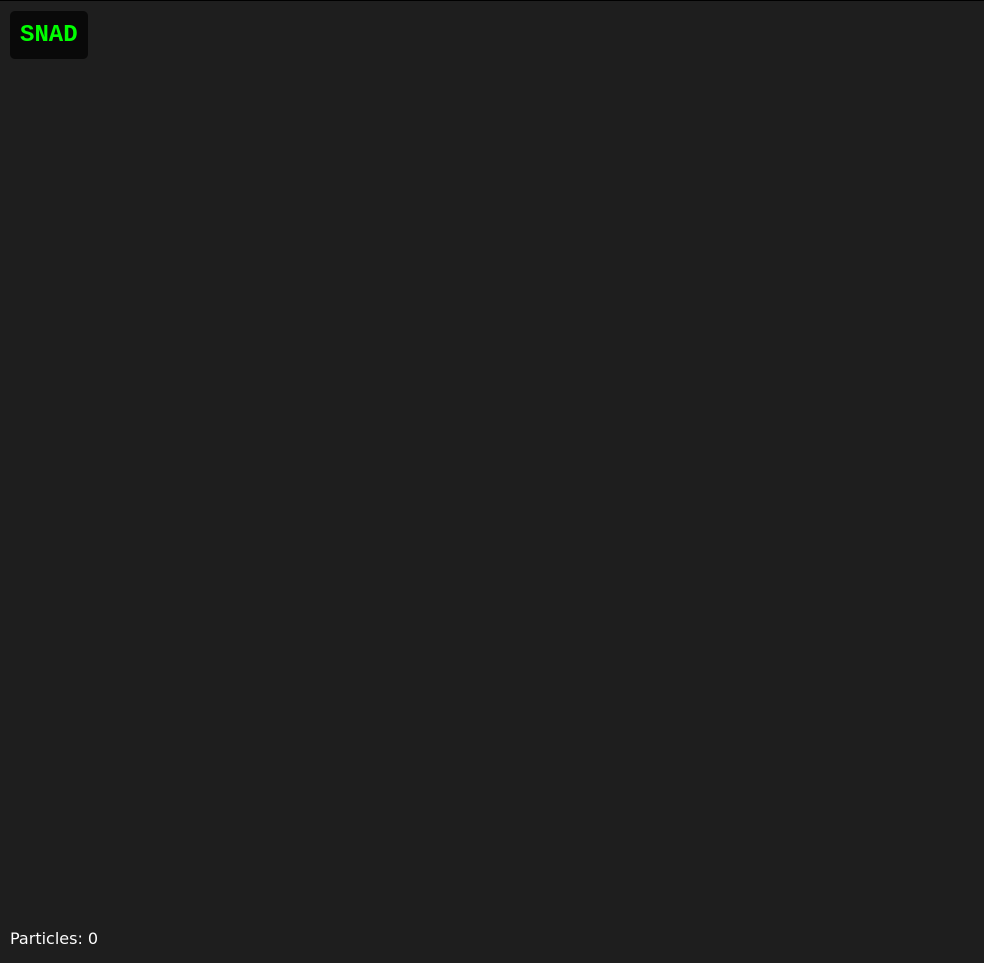

In this challenge, we we’re given a website that lets you place sand and watch it fill up the screen.

It does have it’s own code, so lets take a look at that code to see if there’s anything interesting there.

Note

The code was minimized, and while some may think of it as a proper form of obfuscation, it’s trivially easy to make minimized code easily readable again, the only benefit to minimizing is the space you might save, just don’t use it to keep your code secure.

const requiredGrains = 7,
	targetPositions = [{
		x: 367,
		y: 238,
		colorHue: 0
	}, {
		x: 412,
		y: 293,
		colorHue: 40
	}, {
		x: 291,
		y: 314,
		colorHue: 60
	}, {
		x: 392,
		y: 362,
		colorHue: 120
	}, {
		x: 454,
		y: 319,
		colorHue: 240
	}, {
		x: 349,
		y: 252,
		colorHue: 280
	}, {
		x: 433,
		y: 301,
		colorHue: 320
	}],
	tolerance = 15,
	hueTolerance = 20;
let particles = [],
	grid = [],
	isMousePressed = !1,
	colorIndex = 0,
	flagRevealed = !1,
	targetIndicatorsVisible = !1,
	gravityStopped = !1;

function getRainbowColor() {
	return color("hsb(" + (colorIndex = (colorIndex + 5) % 360) + ", 100%, 90%)")
}

function getSpecificColor(e) {
	return color("hsb(" + e + ", 100%, 90%)")
}
async function retrieveFlag() {
	let e = document.getElementById("flag-container");
	e.style.display = "block";
	try {
		let t = particles.filter(e => e.settled).map(e => ({
				x: Math.floor(e.x),
				y: Math.floor(e.y),
				colorHue: e.colorHue
			})),
			o = await fetch("/api/verify-ctf-solution", {
				method: "POST",
				headers: {
					"Content-Type": "application/json"
				},
				body: JSON.stringify({
					particleData: t
				})
			}),
			i = await o.json(),
			r = e.querySelector(".loading");
		r && r.remove(), i.success ? (e.querySelector("p").textContent = "SNAD!", document.getElementById("flag-text").textContent = i.flag) : (e.querySelector("p").textContent = i.message, document.getElementById("flag-text").textContent = "", setTimeout(() => {
			e.style.display = "none", flagRevealed = !1
		}, 3e3))
	} catch (l) {
		console.error("Error retrieving flag:", l), document.getElementById("flag-text").textContent = "Error retrieving flag. Please try again.";
		let s = e.querySelector(".loading");
		s && s.remove()
	}
}

function injectSand(e, t, o) {
	if (isNaN(e) || isNaN(t) || isNaN(o)) return console.error("Invalid parameters. Usage: injectSand(x, y, hue)"), !1;
	o = (o % 360 + 360) % 360;
	let i = new Particle(e, t, {
		colorHue: o,
		settled: !0,
		skipKeyCheck: !0,
		vx: 0,
		vy: 0
	});
	particles.push(i);
	let r = floor(e),
		l = floor(t);
	return r >= 0 && r < width && l >= 0 && l < height && (grid[l][r] = !0), i
}

function toggleGravity() {
	gravityStopped = !gravityStopped, console.log(`Gravity ${gravityStopped ? "stopped" : "resumed"}`)
}
class Particle {
	constructor(e, t, o = {}) {
		this.x = void 0 !== o.x ? o.x : e, this.y = void 0 !== o.y ? o.y : t, this.size = o.size || random(2, 4), void 0 !== o.colorHue ? (this.colorHue = o.colorHue, this.color = getSpecificColor(o.colorHue)) : (this.color = getRainbowColor(), this.colorHue = colorIndex), this.vx = void 0 !== o.vx ? o.vx : random(-.5, .5), this.vy = void 0 !== o.vy ? o.vy : random(0, 1), this.gravity = o.gravity || .2, this.friction = o.friction || .98, this.settled = o.settled || !1, o.skipKeyCheck || this.checkSpecialGrain()
	}
	checkSpecialGrain() {
		keyIsDown(82) ? (this.color = getSpecificColor(0), this.colorHue = 0) : keyIsDown(79) ? (this.color = getSpecificColor(40), this.colorHue = 40) : keyIsDown(89) ? (this.color = getSpecificColor(60), this.colorHue = 60) : keyIsDown(71) ? (this.color = getSpecificColor(120), this.colorHue = 120) : keyIsDown(66) ? (this.color = getSpecificColor(240), this.colorHue = 240) : keyIsDown(73) ? (this.color = getSpecificColor(280), this.colorHue = 280) : keyIsDown(86) && (this.color = getSpecificColor(320), this.colorHue = 320)
	}
	update(e) {
		if (this.settled || gravityStopped) return;
		this.vy += this.gravity, this.vx *= this.friction;
		let t = this.x + this.vx,
			o = this.y + this.vy;
		(t < 0 || t >= width || o >= height) && (o >= height && (o = height - 1, this.settled = !0), t < 0 && (t = 0), t >= width && (t = width - 1));
		let i = min(floor(o) + 1, height - 1),
			r = floor(t);
		if (i < height && !e[i][r]) this.x = t, this.y = o;
		else {
			let l = max(r - 1, 0),
				s = min(r + 1, width - 1);
			i < height && !e[i][l] ? (this.x = t - 1, this.y = o, this.vx -= .1) : i < height && !e[i][s] ? (this.x = t + 1, this.y = o, this.vx += .1) : (this.x = r, this.y = floor(this.y), this.settled = !0)
		}
		let c = floor(this.x),
			a = floor(this.y);
		c >= 0 && c < width && a >= 0 && a < height && (e[a][c] = !0)
	}
	draw() {
		noStroke(), fill(this.color), circle(this.x, this.y, this.size)
	}
}

function setup() {
	createCanvas(windowWidth, windowHeight), resetGrid(), document.addEventListener("keydown", function(e) {
		"t" === e.key && (targetIndicatorsVisible = !targetIndicatorsVisible), "x" === e.key && toggleGravity()
	}), window.injectSand = injectSand, window.toggleGravity = toggleGravity, window.particles = particles, window.targetPositions = targetPositions, window.checkFlag = checkFlag
}

function resetGrid() {
	grid = [];
	for (let e = 0; e < height; e++) {
		grid[e] = [];
		for (let t = 0; t < width; t++) grid[e][t] = !1
	}
	flagRevealed = !1;
	let o = document.getElementById("flag-container");
	o.style.display = "none"
}

function draw() {
	if (background(30), isMousePressed && mouseX > 0 && mouseX < width && mouseY > 0 && mouseY < height)
		for (let e = 0; e < 3; e++) {
			let t = new Particle(mouseX + random(-5, 5), mouseY + random(-5, 5));
			particles.push(t)
		}
	if (targetIndicatorsVisible)
		for (let o of (stroke(255, 150), strokeWeight(1), targetPositions)) noFill(), stroke(o.colorHue, 100, 100), circle(o.x, o.y, 30);
	let i = [];
	for (let r = 0; r < height; r++) {
		i[r] = [];
		for (let l = 0; l < width; l++) i[r][l] = !1
	}
	for (let s of particles) {
		s.update(grid), s.draw();
		let c = floor(s.x),
			a = floor(s.y);
		c >= 0 && c < width && a >= 0 && a < height && (i[a][c] = !0)
	}
	grid = i, checkFlag(), fill(255), textSize(16), text("Particles: " + particles.length, 10, height - 20)
}

function checkFlag() {
	if (flagRevealed) return;
	let e = 0,
		t = [];
	for (let o of targetPositions) {
		let i = !1;
		for (let r of particles)
			if (r.settled) {
				let l = dist(r.x, r.y, o.x, o.y),
					s = min(abs(r.colorHue - o.colorHue), 360 - abs(r.colorHue - o.colorHue));
				if (l < 15 && s < 20) {
					i = !0, t.push({
						targetPos: `(${o.x}, ${o.y})`,
						targetHue: o.colorHue,
						particlePos: `(${Math.floor(r.x)}, ${Math.floor(r.y)})`,
						particleHue: r.colorHue,
						distance: Math.floor(l),
						hueDifference: Math.floor(s)
					});
					break
				}
			} i && e++
	}
	e >= 7 && (flagRevealed = !0, console.log("\uD83C\uDF89 All positions correct! Retrieving flag..."), retrieveFlag())
}

function mousePressed() {
	isMousePressed = !0
}

function mouseReleased() {
	isMousePressed = !1
}

function keyPressed() {
	("c" === key || "C" === key) && (particles = [], resetGrid())
}

function windowResized() {
	resizeCanvas(windowWidth, windowHeight), resetGrid()
}

The interesting bits for us is targetPositions, checkFlag, and injectSand. We see in the draw function that it invokes checkFlag, so if we add in the correct particles of sand based on targetPositions, we’ll allow the checkFlag function to call retrieveFlag, and give us the flag.

Knowing that, let’s think of how we can get those particular grains of sand to all be in the same spot at the same time, sure we could pile them up and hop for the best but that would take a while and we cant even guarantee that the grains would be the right colors. Thankfully, the devs have left us a better option, the injectSand function. Let’s see what that one looks like.

function injectSand(e, t, o) {
	if (isNaN(e) || isNaN(t) || isNaN(o)) return console.error("Invalid parameters. Usage: injectSand(x, y, hue)"), !1;
	o = (o % 360 + 360) % 360;
	let i = new Particle(e, t, {
		colorHue: o,
		settled: !0,
		skipKeyCheck: !0,
		vx: 0,
		vy: 0
	});
	particles.push(i);
	let r = floor(e),
		l = floor(t);
	return r >= 0 && r < width && l >= 0 && l < height && (grid[l][r] = !0), i
}

So it looks like all we have to do is feed in the x and y coordinates, plus the color as specified in targetPositions, and we should be good. I ran the following code in the terminal:

injectSand(367, 238, 0);
injectSand(412, 293, 40);
injectSand(291, 314, 60);
injectSand(392, 362, 120);
injectSand(454, 319, 240);
injectSand(349, 252, 280);
injectSand(433, 301, 320);

and then I got:

FLAG: flag{6ff0c72ad11bf174139e970559d9b5d2}
